Camshaft Alignment Timing Tool VW, Audi V6 90, 100, A4, A6 (94-97)

Camshaft Alignment Timing Tool VW, Audi V6 90, 100, A4, A6 (94-97)

Product ID: VW1105, VWA1105-4
$49.99 $59.99

Product Description:

Set includes:

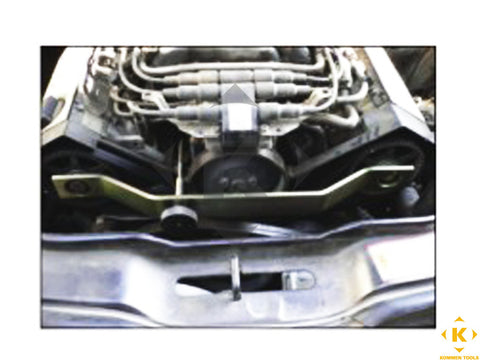

One camshaft alignment fixture that interfaces with the cam gears and is utilized for the critical task of securing and maintaining TDC timing alignment when the cam belt is serviced or removed for other front-engine or cylinder head service tasks.

One clamp for securing the camshaft alignment fixture

One TDC locking pin: 18-mm (diameter) x 45-mm long that is used to locate the crankshaft at TDC (Top Dead Center) when timing the engine or servicing the timing belt or flywheel / drive plate.

NOTE: This tool set is only applicable to V6 2-valve engines installed in Audi platforms from 1991-1997. It is not applicable to any 5-valve engines.

Material: Cadmium and black-oxide plated steel
Application Make: Audi
Application Detail: Audi AFC engines - Audi 90, 100, A4, A6 1994-97
